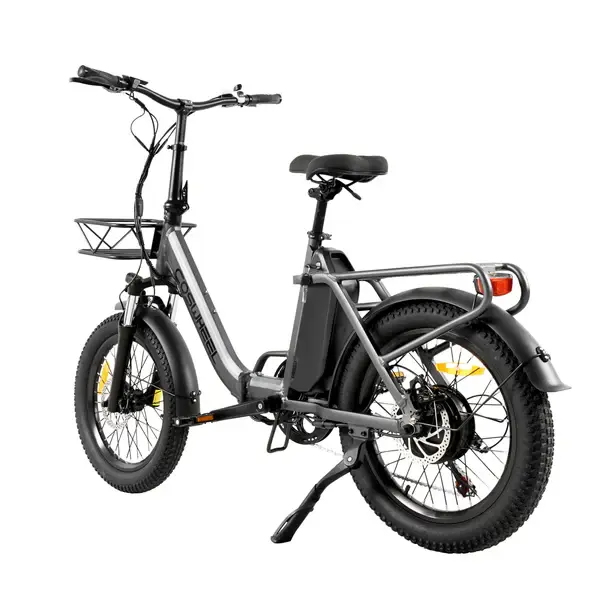

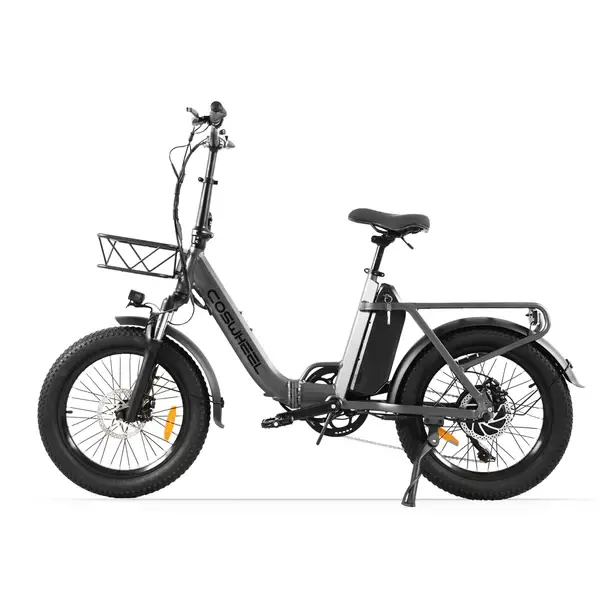

Y20L is a new commuter step through electric bike launched by COSWHEEL. Its biggest feature is that it is equipped with a torque sensor, which can save riders effort and distribute power output more easily compared to electromagnetic induction sensors. At the same time, Y20L is equipped with a peak 1200W (rated 750W) motor, 50N.m torque, and a maximum speed of 28mph (45km/h). The 15AH lithium battery has a maximum range of 52 miles (84km) (throttle + pedal assist).
Guaranteed safe & secure checkout
Torque Sensor for Smooth Power
Y20L is a Step-Thru commuter electric bike that uses a torque sensor. Compared with electromagnetic induction sensors, torque sensors make the power output of electric bicycles more stable, available as you pedal, making riding more labor-saving and more friendly to aging and physically disabled riders.
Compact and Lightweight
The frame and handlebars of the Y20L are both foldable, and the net weight of the whole vehicle is only 28kg. In addition, the handles are designed at the folding point, which makes it very easy to lift and it is also very convenient to put into the car when traveling. It is one of the best choices for cycling exercise.
Peak 1200W Motor
The Y20L is equipped with a peak 1200W (rated 750W) high-speed brushless motor, a torque of 50N.m, a maximum speed of 28mph (45km/h), and can easily climb a 30° slope.
15AH Removable Battery
The Y20L is equipped with a 15AH lithium battery, 720WH, with a maximum range of 52 miles (84km) (accelerator + pedal assist). It is equipped with a key switch and the battery is removable.
Torque Sensors
It uses a new torque sensor, which ensures smooth power output and outputs power according to the strength of your foot, making riding more labor-saving and friendly to the elderly and disabled.
160mm Brake Disc
Equipped with 160mm brake discs at the front and rear, providing smooth braking.
Lockable Front Suspension
The front suspension has 80mm travel and is equipped with a locking function, which can fix the front fork and prevent it from rebounding, allowing you to enjoy more riding pleasure.
Adjustable Handlebar
The handlebars can be adjusted in height according to your preference and can be folded, which is very convenient.

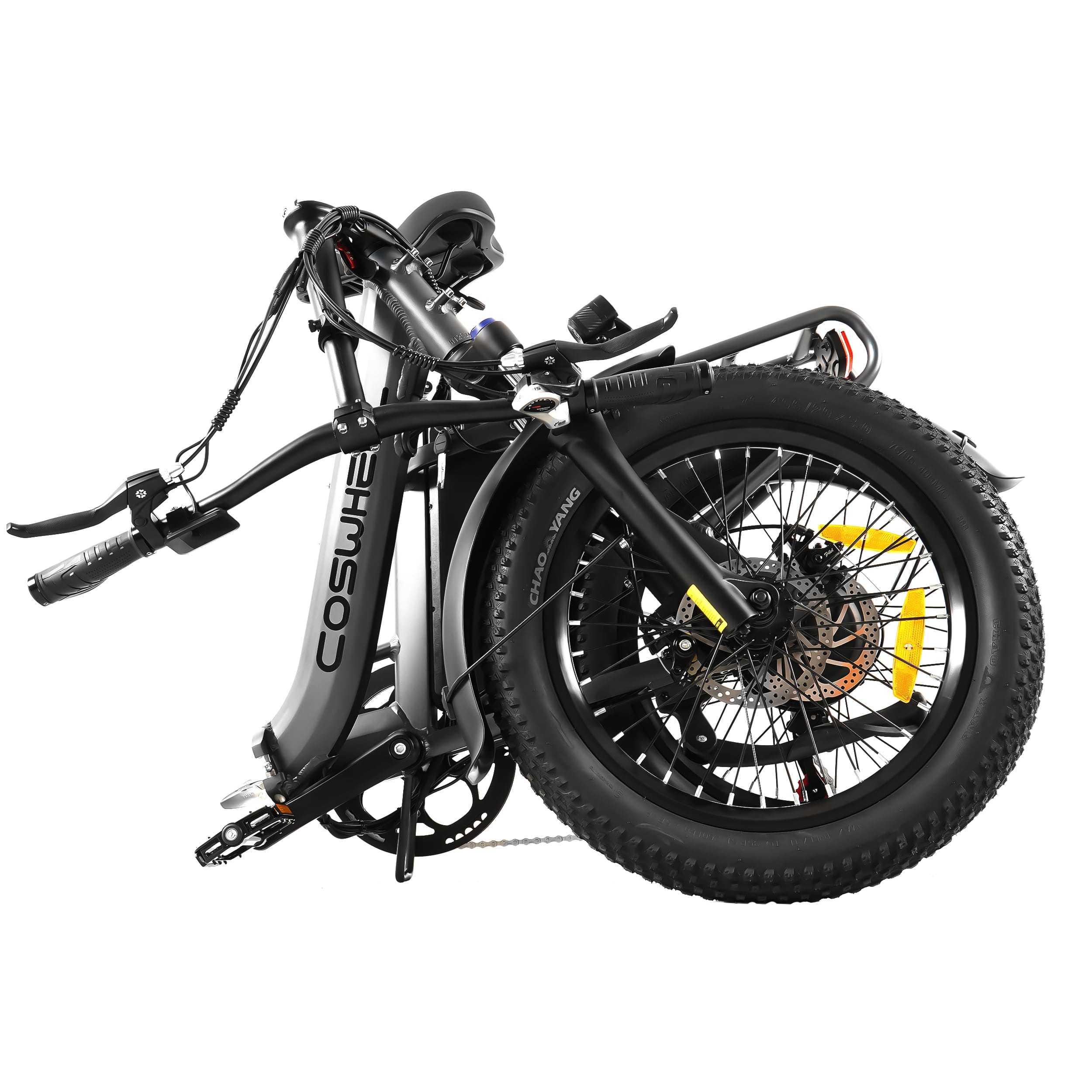

Foldable Frame
The frame can be folded and equipped with armrests, with a net weight of only 28kg, so it can be easily placed in the trunk of a car.
Overall size (MM)
1680*670*1060 mm
Packing size (MM)
1400*450*260 mm
Max. Loading (KG)
120kg
Net weight (KG)
28kg
People Age
Adult、Teens
Top speed (KM/H)
28mph(45km/h)
Range (KM)
52miles(84km)
Climbing angle
30 degrees
Working temperature
-10℃～40℃
Storage temperature
-10℃～40℃
Battery type
18650 Lithium battery
Battery capacity (AH)
15Ah with removable battery
Motor type
DC brushless motor
Motor power
peak 1200w(rated 750w)
Rated voltage
48v
Sensor
Torque Sensor
Charging time
7.5 hours
Wheel & Tire
20"*3"
Frame material
Aluminium alloy
Speed up
Twist Throttle
Brake
Double Disc Brake (front and back)
Display information
LCD display: speed, headlight, fault code...

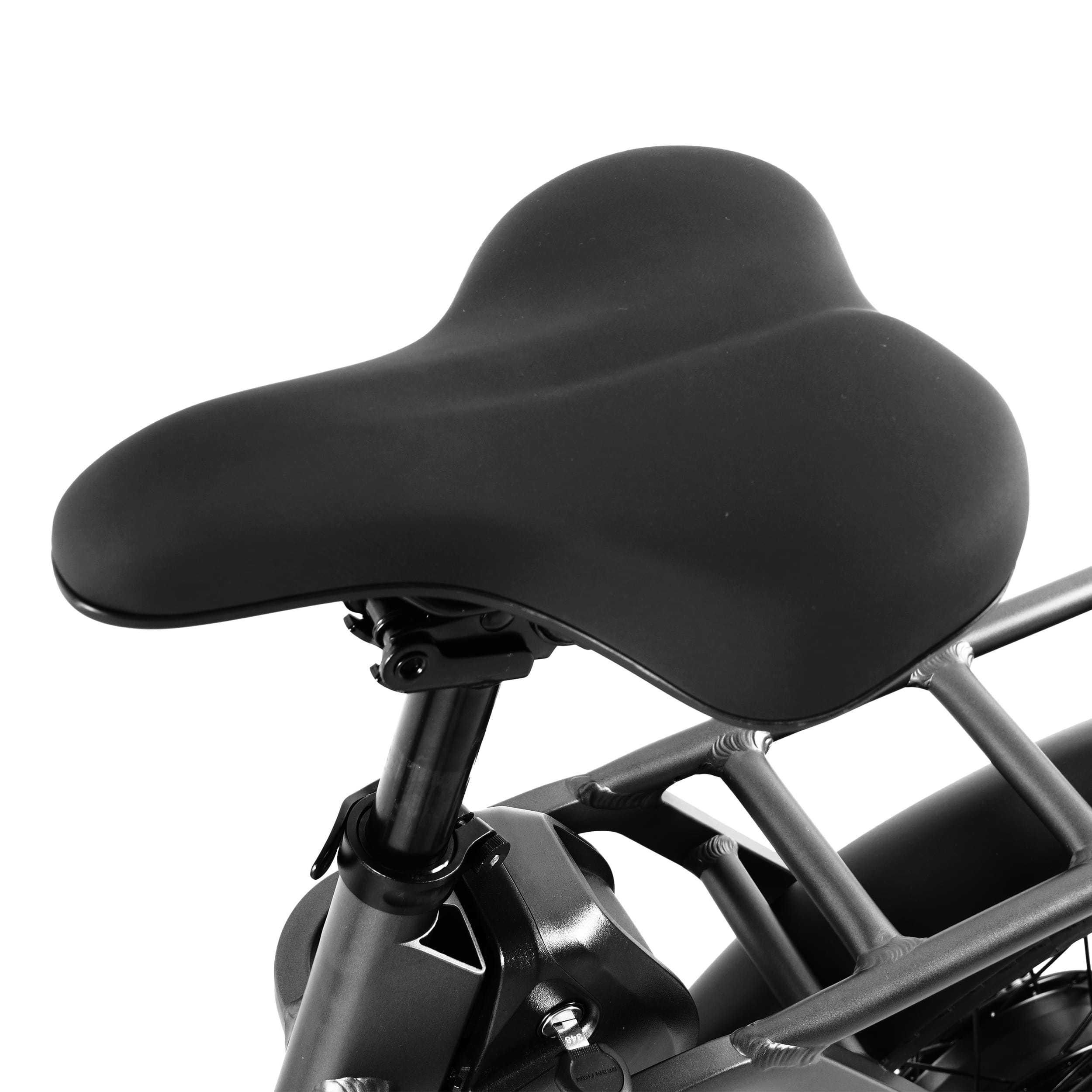

Adjustable Seat
The seat is adjustable from 32.3"-39.7" (82-101cm) above the ground, suitable for riders 5'1" - 6'5".
Front Cargo Basket
The Y20L is equipped with a front cargo basket, making your travel more convenient.
LCD display: speed, headlight, fault code...
